AMAT Spin Motor Repair & Refurbishment: Restoring Failed Motors

When a direct-drive spin motor fails on an AMAT ion implanter, the tool goes down — and the cost of that downtime almost always outweighs the cost of the repair itself. IES Semiconductor Parts returns spin motors to full operational condition through a complete, in-house refurbishment service: no third parties, no shipping hardware around the country, and no waiting on someone else's lead time.

Semiconductor manufacturing depends on tools that simply cannot afford unplanned downtime, and a failed spin motor is one of the more disruptive failures an ion implanter can suffer. Internal maintenance teams are rarely equipped to strip, repair and requalify a precision drive motor themselves, and few third-party repair houses have the parts holding or the test rigs to verify a rebuild properly. That combination of scarce in-house expertise and limited external support is exactly the gap IES Semiconductor Parts was built to close.

Total In-House Capability

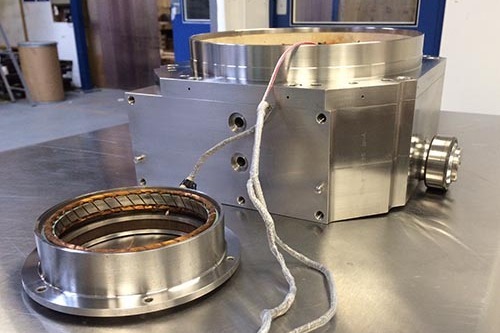

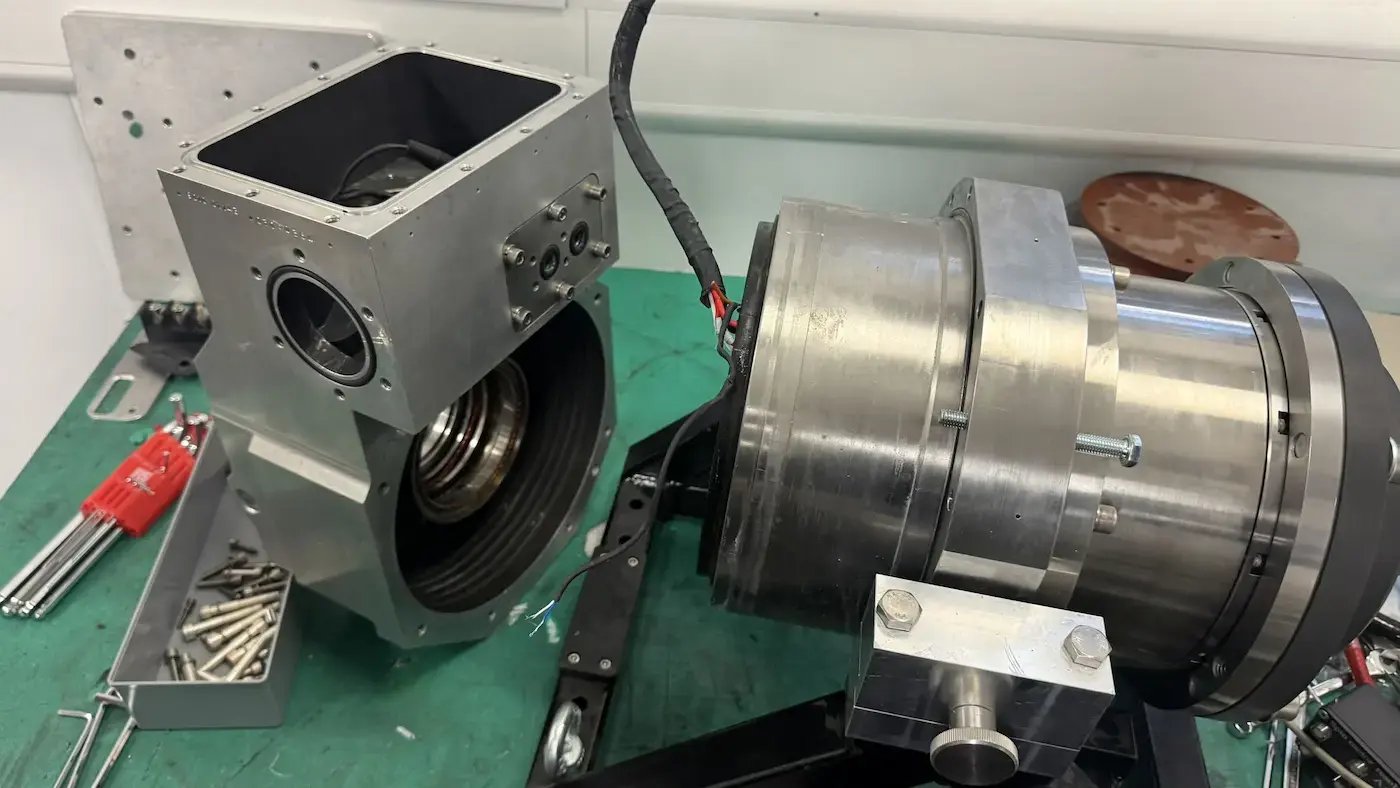

IES Semiconductor Parts supports both Axsys and Vernitron type direct-drive spin motors fitted to AMAT / Applied Materials 9500, XR80, XR200 and QUANTUM ion implanters. Each unit is carefully disassembled, inspected, repaired and rebuilt in our own in-house semiconductor support centre. Failing ferrofluidic seals, resolver damage caused by stator and rotor binding, worn connectors, water fittings and O-rings are all addressed as part of a full rebuild, with consumable components replaced on condition rather than guesswork.

That capability doesn't stop at the motor itself. IES Semiconductor Parts can also test Motech spin amplifiers and spin PSUs, so the wider drive system can be diagnosed and verified rather than treating the motor in isolation.

What is a direct-drive spin motor?

A direct-drive spin motor is the motor on an AMAT ion implanter end station responsible for rotating the wafer at speed during high-current implant. It couples directly to the wheel, without a gearbox stage, and depends on a resolver for accurate position feedback and ferrofluidic seals to hold vacuum integrity while it turns.

We Machine What Others Have to Scrap

Most businesses simply don't have the in-house expertise, facilities or parts holding to support legacy drive systems like these, and it's exactly the kind of specialist support that's becoming harder to find in the industry as OEMs shift focus to newer tools. Where a spin motor component is damaged beyond reuse, IES Semiconductor Parts' in-house machining capability allows it to be remanufactured to original specification, rather than condemning the whole unit.

Combined with one of the largest holdings of spin motor parts and consumables available anywhere, that means repairs can be turned around quickly, instead of chasing obsolete components on the open market — the kind of scenario that can otherwise leave a tool down for weeks.

Comprehensive Testing on Every Motor

A repair is only as good as the verification behind it. Every unit goes through a full test programme before it leaves us:

● Motor winding integrity — phase-to-phase resistance and insulation resistance checks across all windings

● Resolver verification — R1, sine, cosine and thermistor measurements, with position confirmed live using an Analog Devices RDC evaluation platform

● Rotational testing — free-rotation, vibration and acoustic noise checks to confirm the motor runs cleanly

● Dynamometer rig testing — loaded testing at maximum RPM, with phase-to-ground input voltage verified on our dedicated dyno rig

● Vacuum and helium leak integrity — extended vacuum hold with helium leak detection to confirm seal performance

● Cooling system checks — water fittings inspection and leak verification

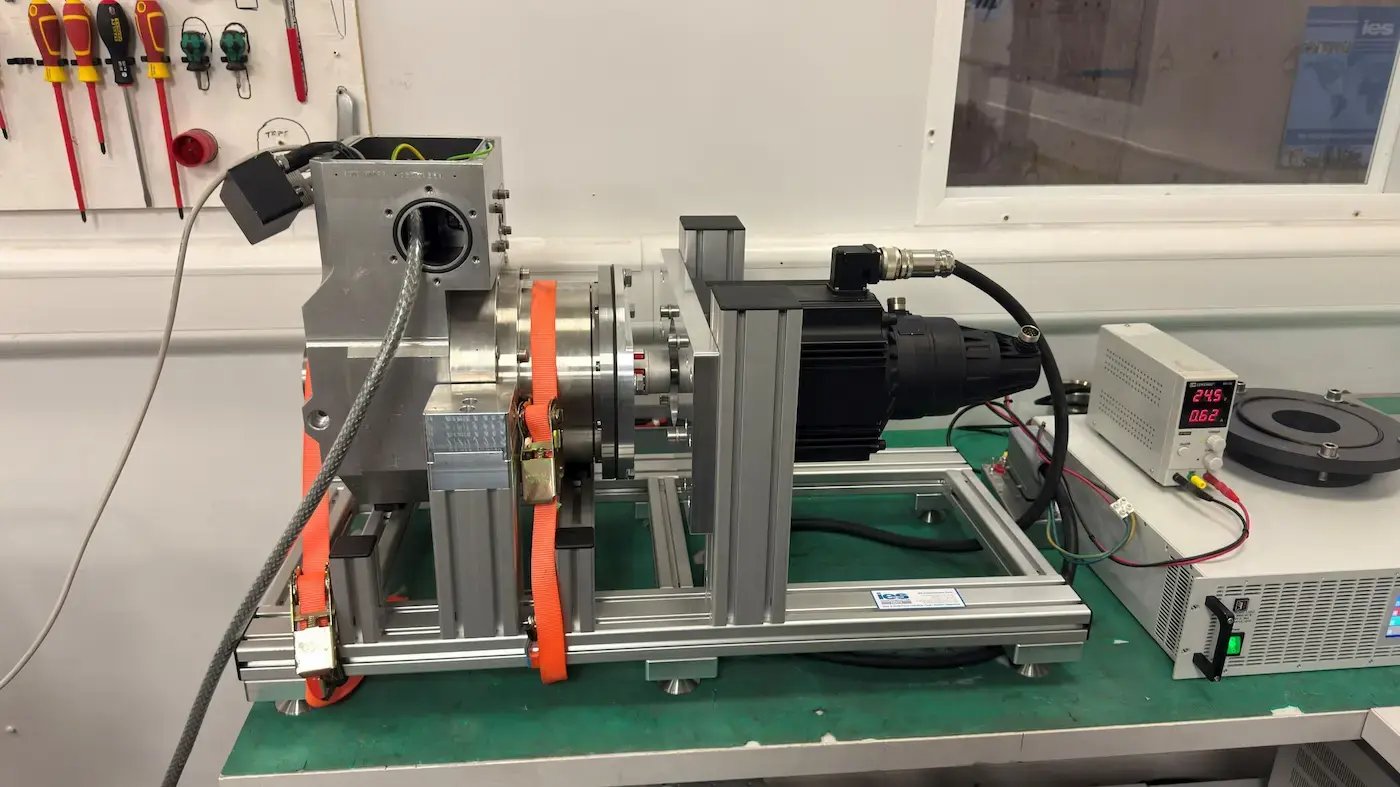

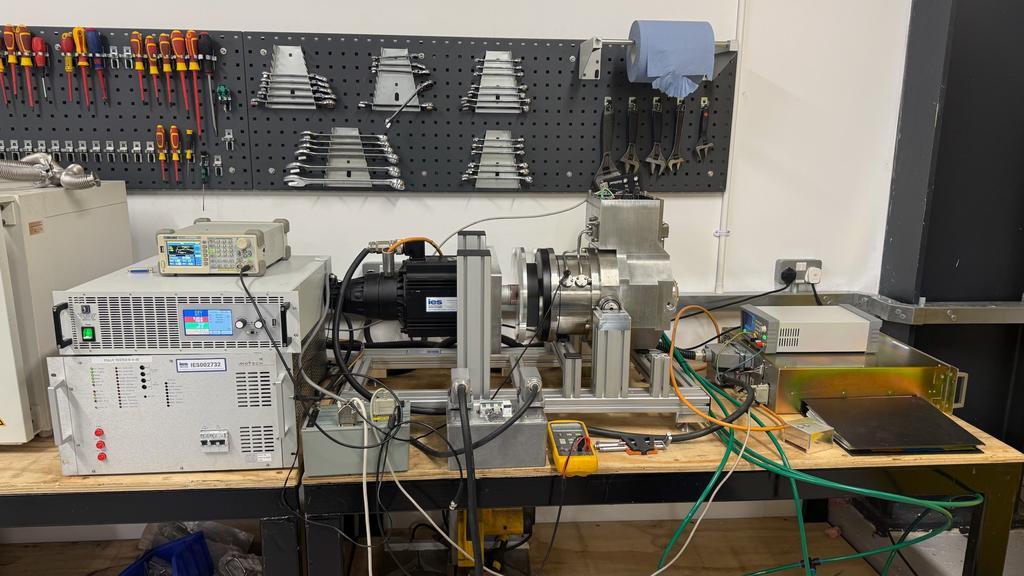

Testing is carried out using our custom in-house dynamometer rig, which allows the spin motor to be operated at maximum RPM using the Motech MP80 Controller while a secondary motor applies load to simulate an implanter wheel. Motors are run under realistic operating conditions and must pass this loaded test alongside the high-vacuum leak check before sign-off.

Full Traceability

Every motor is supplied with a detailed repair report documenting the work carried out and the test results, signed off by our engineering team, so you have complete traceability and the confidence to put the unit straight back into service.

Why Choose IES Semiconductor Parts

● Complete in-house capability — disassembly, repair, machining, testing and traceability all under one roof

● Support for both Axsys and Vernitron type direct-drive spin motors across the AMAT 9500, XR80, XR200 and QUANTUM range

● One of the largest holdings of spin motor parts and consumables available anywhere

● A full, realistic test programme on every motor, including loaded dynamometer testing and vacuum leak verification

● A detailed, signed-off repair report with every unit, for complete traceability

This is the same approach IES Semiconductor Parts takes across its parts business generally: fast, direct response, and no compromise on testing, because a tool down on a production line doesn't leave room for guesswork.
